(C/C++) Image Format

1. Image File Format

Original

• RAW

Lossy Compression

• JPG

Lossless Compression

• BMP
• TIFF
• PNG

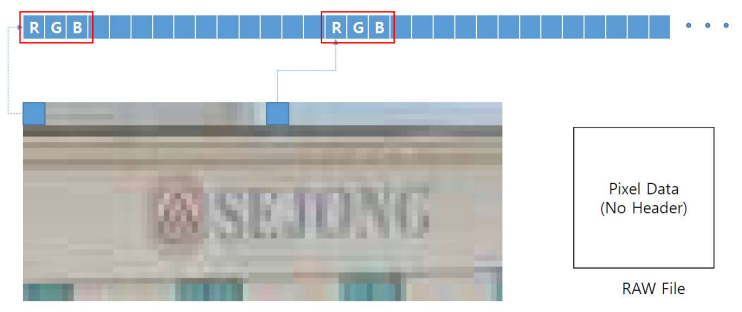

2. RAW File Format

RAW 파일은 압축 및 가공이 되지 않은 이미지 데이터를 포함하고 있다.

사진을 찍을 때 뷰파인더로 보이는 모든 세부 정보를 담을 수 있다.

RAW 파일 포맷은 모든 래스터 파일 유형 중 가장 많은 양의 세부 정보를 저장한다.

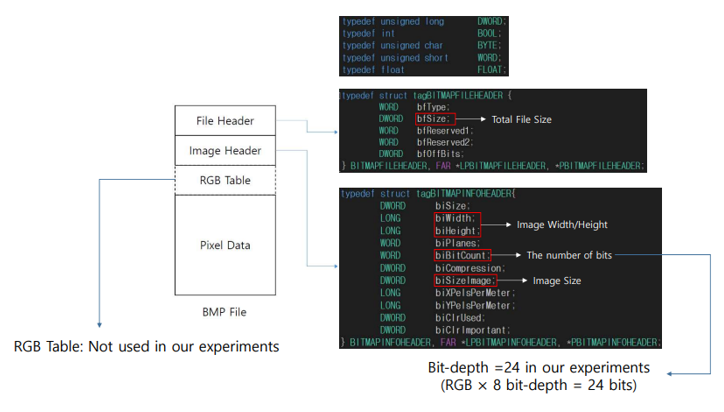

3. BMP File Format



4. BMP File Input

// BMP File Input
BITMAPFILEHEADER bmpFile;
BITMAPINFOHEADER bmpInfo;
FILE* inputFile = NULL;
inputFile = fopen("AICenter.bmp", "rb");
fread(&bmpFile, sizeof(BITMAPFILEHEADER), 1, inputFile);
fread(&bmpInfo, sizeof(BITMAPINFOHEADER), 1, inputFile);

int width = bmpInfo.biWidth;
int height = bmpInfo.biHeight;
int size = bmpInfo.biSizeImage;
int bitCnt = bmpInfo.biBitCount;
int stride = (((bitCnt/8)*width)+3)/4*4;
printf("W: %d(%d)\nH: %d\nS: %d\nD: %d\n\n", width, stride, height, size, bitCnt);

unsigned char* inputImg = NULL, * outputImg = NULL;
inputImg = (unsigned char*)calloc(size, sizeof(unsigned char));
outputImg = (unsigned char*)calloc(size, sizeof(unsigned char));
fread(inputImg, sizeof(unsigned char), size, inputFile);



5. BMP File Output

// Original Copy
for (int i = 0; i < height; i++) {
   for (int j = 0; j < width; j++) {
      outputImg[j * stride + 3 * i + 0] = inputImg[j * stride + 3 * i + 0];
      outputImg[j * stride + 3 * i + 1] = inputImg[j * stride + 3 * i + 1];
      outputImg[j * stride + 3 * i + 2] = inputImg[j * stride + 3 * i + 2];
   }
}

// BMP File Output
FILE* outputFile = fopen("Output_1.bmp", "wb");
FILE* outputFile_2 = fopen("Output_2.bmp", "wb");
fwrite(&bmpFile, sizeof(BITMAPFILEHEADER), 1, outputFile);     //RGB
fwrite(&bmpInfo, sizeof(BITMAPINFOHEADER), 1, outputFile);
fwrite(outputImg, sizeof(unsigned char), size, outputFile);

fwrite(&bmpFile, sizeof(BITMAPFILEHEADER), 1, outputFile_2);   //YYY
fwrite(&bmpInfo, sizeof(BITMAPINFOHEADER), 1, outputFile_2);
fwrite(outputImg_2, sizeof(unsigned char), size, outputFile_2);

free(outputImg);
free(inputImg);
free(outputImg_2);
fclose(inputFile);
fclose(outputFile);
fclose(outputFile_2);



6. Conclusion

#define _CRT_SECURE_NO_WARNINGS
#include <stdio.h>
#include <stdlib.h>
#include <windows.h>

int main(int argc, char* argv[])
{
    //BMP File Input
    BITMAPFILEHEADER bmpFile;
    BITMAPINFOHEADER bmpInfo;
    FILE* inputFile = NULL;
    inputFile = fopen("AICenter.bmp", "rb");
    fread(&bmpFile, sizeof(BITMAPFILEHEADER), 1, inputFile);
    fread(&bmpInfo, sizeof(BITMAPINFOHEADER), 1, inputFile);

    int width = bmpInfo.biWidth;
    int height = bmpInfo.biHeight;
    int size = bmpInfo.biSizeImage;
    int bitCnt = bmpInfo.biBitCount;
    int stride = (((bitCnt/8)*width)+3)/4*4;
    printf("W: %d(%d)\nH: %d\nS: %d\nD: %d\n\n", width, stride, height, size, bitCnt);

    unsigned char* inputImg = NULL, * outputImg = NULL;
    inputImg = (unsigned char*)calloc(size, sizeof(unsigned char));
    outputImg = (unsigned char*)calloc(size, sizeof(unsigned char));
    fread(inputImg, sizeof(unsigned char), size, inputFile);

    // Original Copy
    for (int i = 0; i < height; i++)
    {
        for (int j = 0; j < width; j++)
        {
            outputImg[j * stride + 3 * i + 0] = inputImg[j * stride + 3 * i + 0];
            outputImg[j * stride + 3 * i + 1] = inputImg[j * stride + 3 * i + 1];
            outputImg[j * stride + 3 * i + 2] = inputImg[j * stride + 3 * i + 2];
        }
    }

    // BMP File Output
    FILE* outputFile = fopen("Output_1.bmp", "wb");
    FILE* outputFile_2 = fopen("Output_2.bmp", "wb");
    fwrite(&bmpFile, sizeof(BITMAPFILEHEADER), 1, outputFile);     //RGB
    fwrite(&bmpInfo, sizeof(BITMAPINFOHEADER), 1, outputFile);
    fwrite(outputImg, sizeof(unsigned char), size, outputFile);

    free(outputImg);
    free(inputImg);
    fclose(inputFile);
    fclose(outputFile);

    return 0;
}
